Absorbline™ by ekko acoustics is a high-performance acoustic panel system for ceilings and walls — offering architects and interior designers a seamless solution to tackle echo and reverberation while enhancing the visual language of the space.
Suspended as ceiling rafts or installed as discreet wall panels, Absorbline™ combines Class A sound absorption with exceptional aesthetic flexibility — now available in a huge range of shapes and sizes to support creative layouts and ambitious designs.
AbsorbLineâ„¢ was developed in collaboration with architects and fit-out teams to ensure visual flexibility, outstanding acoustic performance, and total installation simplicity.
Class A Acoustic Performance: αw 0.95 for excellent echo control
No Visible Fixings: Fabric-wrapped edges for a trimless look
Fire Rated Core & Fabric:
Core: EN 13501-1:2018 A2-s1,d0 and BS476 Class O
Fabric: Multiple options up to EN13501-1 Class B, s1, d0
Fast Installation:
Ceilings: Simple spiral hook suspension
Walls: Secure impaling clips + contact adhesive
Standard or Custom Sizes
123+ Fabric Colours: Choose from Camira’s Cara, Lucia, Era, or Sonus ranges
Lightweight Glass Fibre Core: High-density, 40mm thick
Recyclable materials + VOC-free adhesives
Core Material: 90kg/m³ glass fibre
Panel Thickness: 40mm
Acoustic Rating: αw 0.95 (Class A)
Fire Rating: EN 13501-1:2018 A2-s1,d0
Fabric Options: Camira Cara, Lucia, Era, Sonus (Class B)
Installation:
Ceiling: Spiral hook + cable kit
Wall: Impaling clips + adhesive
Customisation: Size, shape, layout, fabric
| Code | Type | Height (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|---|

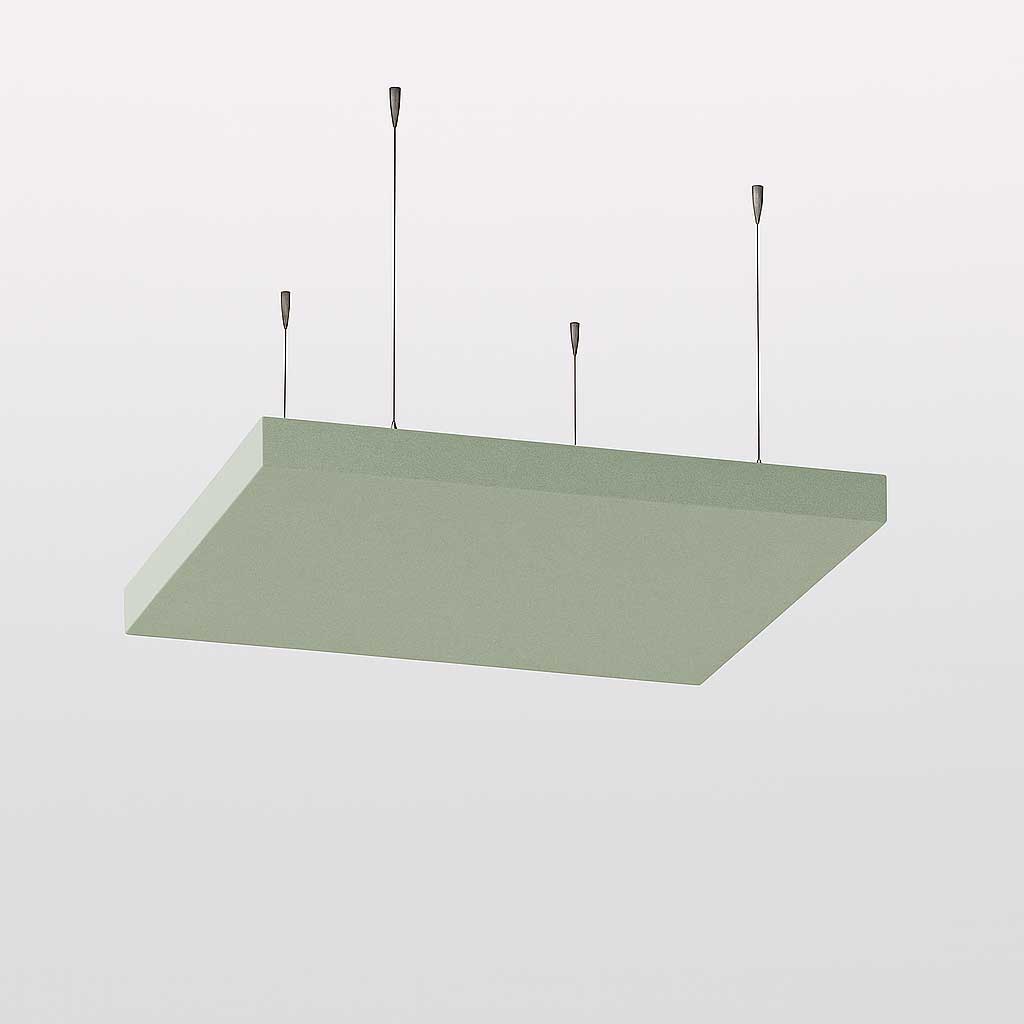

| AL/C/13/***/600 | Fabric wrapped, high-density square acoustic ceiling raft | 600 | 600 | 40 |
| AL/C/13/***/800 | Fabric wrapped, high-density square acoustic ceiling raft | 800 | 800 | 40 |
| AL/C/13/***/1000 | Fabric wrapped, high-density square acoustic ceiling raft | 1000 | 1000 | 40 |
| AL/C/13/***/1200 | Fabric wrapped, high-density square acoustic ceiling raft | 1200 | 1200 | 40 |
