Sculpt 3D

Description
Key Features
Specification

An ekkofelt® PET 3D wall tile with a pleasing wave design created from sections of felt to create a highly effective sound-absorbing feature wall installation.

ekkofelt® PET is made from up to 75% recycled post-consumer waste and is 100% recyclable, offering sustainable solutions for acoustic improvement.

Choose panels made closer to home and explore our acoustic wall solutions.

Creating Quiet through architectural acoustic solutions.

• OEKO-TEX Standard 100 – Declaration of conformity EN ISO 170050-1.
• Manufactured using up to 75% post-consumer recycled material.
• Limitless branding and design possibilities with in-house custom cutting.
• Excellent acoustic performance.
• 0% Formaldehyde binders in our ekkofelt® Products.
• Non-toxic, non-irritant, and non-allergenic.
• Extensive range of colours.
• Manufactured and stocked in the UK.

Panel Composition: 100% PET (Post Consumer Recycled Waste – Polyester Felt)
Dimension: 5 different 600x600mm panels (+/- 3mm). Mix and match to create your design.
Thickness: 9mm or 12mm (+/-0.5mm)
Colours: 63 Colours Available
Melting Point: 250°C Max. Recommended Service Temp: 80°C

Description

Technical Data

Code Type Height (mm) Width (mm) Thickness (mm)
E3DS/66/A/***/ 3D Acoustic wall tile A 600 600 9 or 12

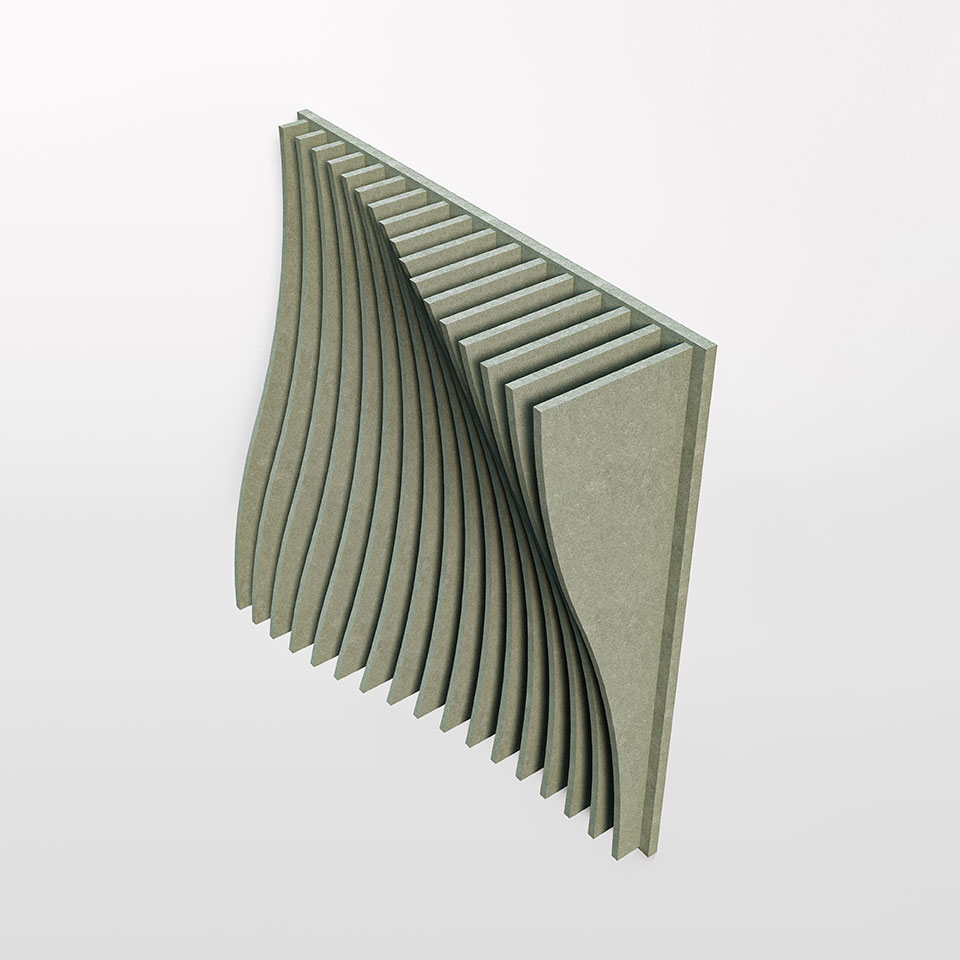

E3DS/66/A1/***/ 3D Acoustic wall tile A1 600 600 9 or 12

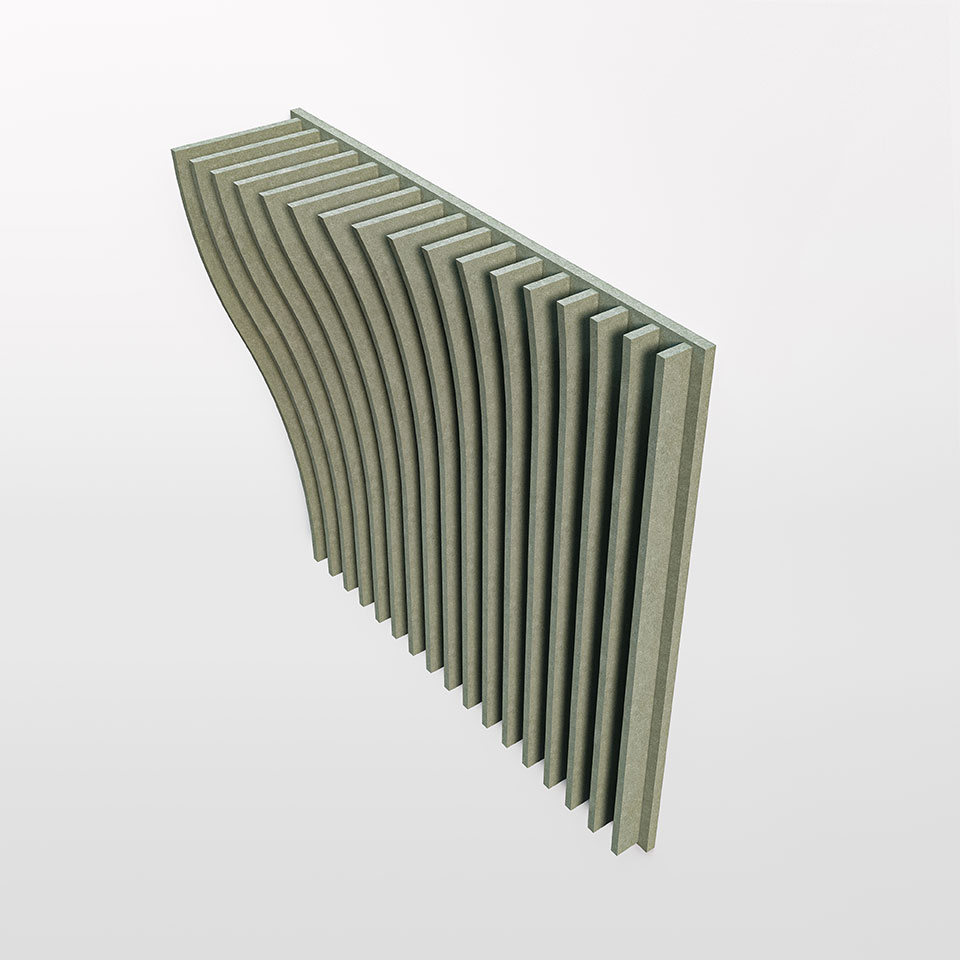

E3DS/66/B/***/ 3D Acoustic wall tile B 600 600 9 or 12

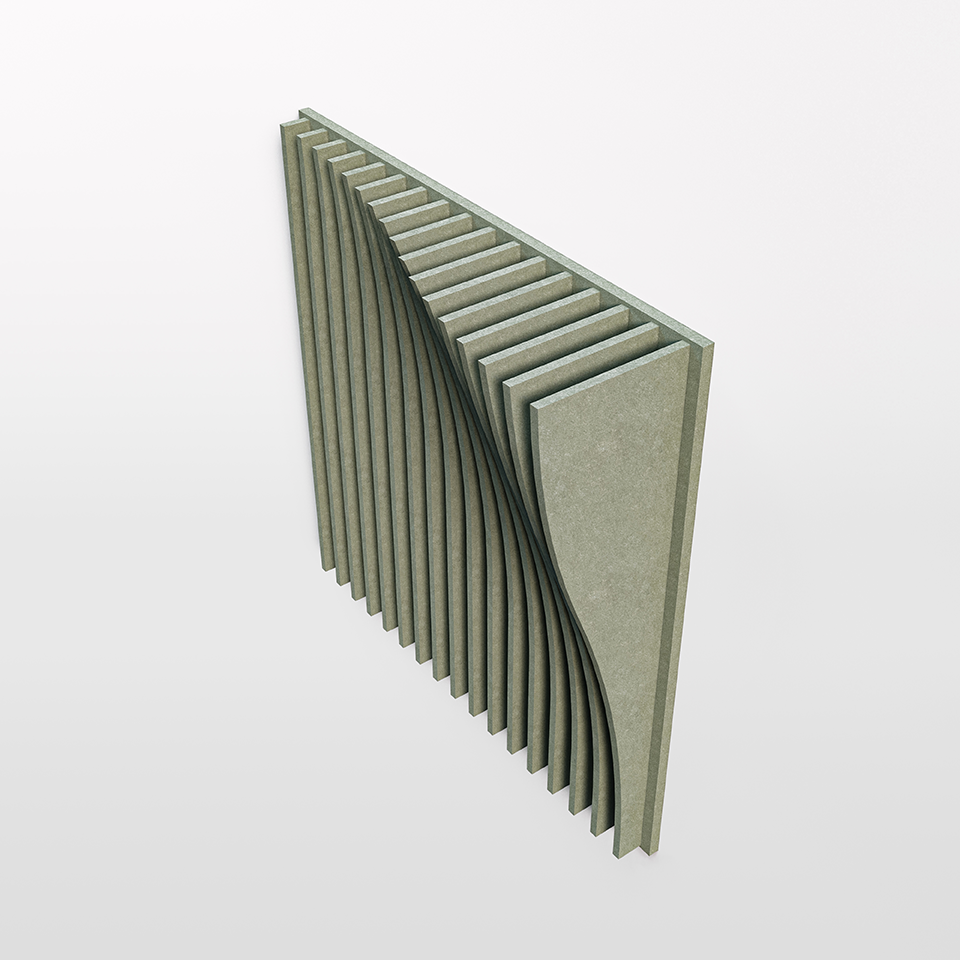

E3DS/66/B1/***/ 3D Acoustic wall tile B1 600 600 9 or 12

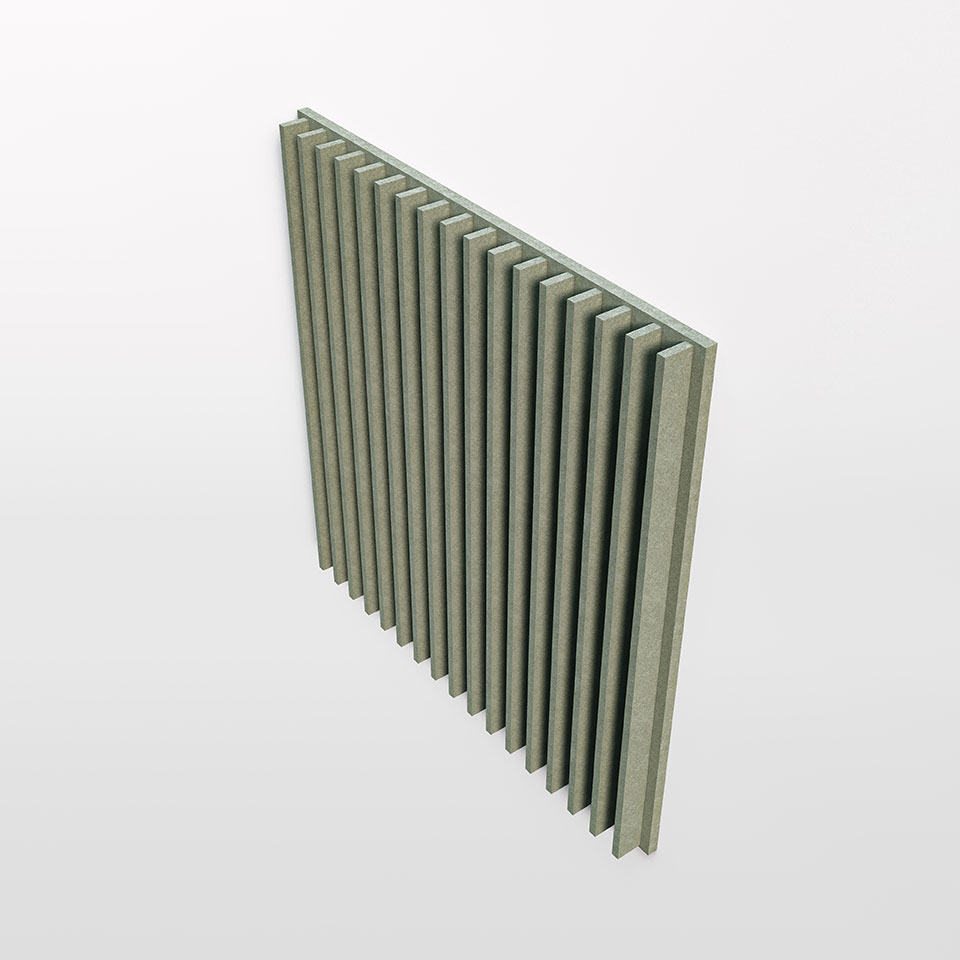

E3DS/66/C/***/ 3D Acoustic wall tile C 600 600 9 or 12
