Lines Vertical Panel

Description
Key Features
Specification

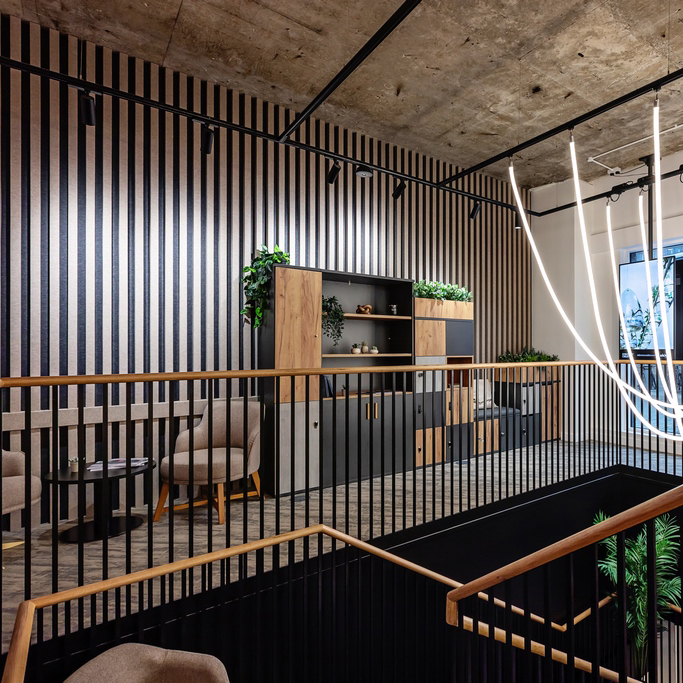

An ekkofelt® PET wall tile with a pleasing rebated vertical line groove design to create sound-absorbing feature wall installations.

ekkofelt® PET acoustic material is made from up to 75% post-consumer recycled waste and is 100% recyclable, offering sustainable solutions for acoustic improvement.

Creating Quiet through architectural acoustic solutions.

For matching options, browse all acoustic wall solutions.

• OEKO-TEX Standard 100 – Declaration of conformity EN ISO 170050-1.
• Manufactured using up to 75% post-consumer recycled material.
• Limitless branding and design possibilities with in-house custom cutting.
• Excellent acoustic performance.
• 0% Formaldehyde binders in our ekkofelt™ Products.
• Non-toxic, non-irritant, and non-allergenic.
• Extensive range of colours.
• Manufactured and stocked in the UK.

Panel Composition: 100% PET (Post Consumer Recycled Waste and Polyester Felt)
Dimension: 2400x1200mm (+/- 3mm) x 2800x1200mm (+/- 3mm) Lines 50mm apart
Thickness: 9mm or 12mm (+/-0.5mm)
Groove: Deep Groove: 7mm deep x 14mm wide or Shallow Groove: 3mm deep x 6mm wide
Colours: 63 Colours Available
Melting Point: 250°C Max. Recommended Service Temp: 80°C

Description

Technical Data

Code Type Height (mm) Width (mm) Thickness (mm) Groove Dimensions (mm)
EGLV/2412/9/***/DG Acoustic wall panel 2400 1200 9 7 x 14 Deep Groove – Lines 50mm apart
EGLV/2412/9/***/SG Acoustic wall panel 2400 1200 9 3 x 6 Shallow Groove – Lines 50mm apart
EGLV/2412/12/***/DG Acoustic wall panel 2400 1200 12 7 x 14 Deep Groove – Lines 50mm apart
EGLV/2412/12/***/SG Acoustic wall panel 2400 1200 12 3 x 6 Shallow Groove – Lines 50mm apart
EGLV/2812/9/***/DG Acoustic wall panel 2800 1200 9 7 x 14 Deep Groove – Lines 50mm apart
EGLV/2812/9/***/SG Acoustic wall panel 2800 1200 9 3 x 6 Shallow Groove – Lines 50mm apart
EGLV/2812/12/***/DG Acoustic wall panel 2800 1200 12 7 x 14 Deep Groove – Lines 50mm apart
EGLV/2812/12/***/SG Acoustic wall panel 2800 1200 12 3 x 6 Shallow Groove – Lines 50mm apart
